Polar meter Z5 no screen TV basic parameter configuration:

Optical parameters: Display Technology: 0.45" DMD RGB-LED Features: 3D Brightness: 1000 ANSI lumens brightness uniformity: 98%

Color gamut: >=120&NTSC Standard resolution: WXGA(1280×800) Compatible resolution: 1080P/2K/4K

Projection parameters: Projection ratio: 1.2:1 Off-axis: 100% Keystone correction: Vertical: ± 45 degrees / left and right ± 45 degrees

Projection: front projection/rear projection/ceiling ceiling/ceiling rear projection system parameters: CPUMstar 6A838 Cortex-A53 quad-core 1.7GHz

GPU: Mali-T820 RAM: 2GB DDR3 Internal Storage: 16GB EMMC High-Speed ​​Flash

Operating system: GMUI3.0 Develop multi-screen interaction based on Android 6.0: support Airplay/DLNA

Acoustic Parameters: Channel 2.0 Channel Speaker Unit: 40mm × 2 Power: 10W Interface: Input Interface: HDMI 2.0 × 2 (HDMI2 supports ARC)

USB: 2.0×1 USB 3.0×1 Power Supply ×1 Output Interface: Headphone×1 SPDIF Fiber×1

Wireless interface: dual-band 2.4/5GHz, 802.11a/b/g/n/ac 2x2 dual-antenna dual-broadband dual-broadband Bluetooth: 4.0/BLE low power

Wired Network: Ethernet Electrical Specifications Noise

Other parameters: Size: 158mm × 169mm × 112mm Weight: 1.7kg Packing list: power line × 1

Power adapter × 1 Bluetooth remote control × 1 Remote control battery × 2 Manual & warranty card × 1 Transfer tray × 1

Appearance configuration: simple wind highlights low-key luxury, human design makes operation more convenient

The Z5 no-screen TV adopts a one-piece design. There are 31 tri-color lights on the top of the machine. The smart lights are simple and generous. This design allows it to fully integrate with the home, no matter where it is placed in the home will not look unexpected.

The Kay Gorilla glass lens used in the Z5 screenless TV Z5 is a double-coated anti-reflection film with an anti-fingerprint film on the outer layer to give better protection to the lens and prevent the lens from being scratched. Brightness up to 1000 ANSI lumens, compared with the Z4X increased by 72%, sufficient brightness protection to make the viewing of the colors more beautiful, even if the slightest Ambient Light can also bring a good picture quality performance.

Zilmi no screen TV Z5 interface contains two HDMI2.0, USB2.0 and USB3.0, support for direct USB connection can also connect the handle and microphone, user-friendly device access, singing, playing a game easy to get a machine.

The STR circuit design was added to the Z5 screenless TV Z5, and it turned on in 8 seconds. When you mention the boot, you need to talk about the electric lens slide door of the pole meter. When the machine starts to slide the door, it will open automatically. When it is turned off, it will automatically close. This function is simply the gospel of "lazy people" and "Ma Daha" in the family. It protects the camera intimately. It doesn't have to worry about contaminating the camera with debris, let alone worrying about the lens being drawn to.

The right and left trapezoidal correction function of the Z5 screenless TV Z5 extends the correction angle to 45°, which makes the projector more flexible and can be used in various environments. The living room, bedroom and study room are easily placed to unlock more Watching poses.

Zilmi no screen TV Z5 supports dual band WiFi 2.4G/5G, compared to 2.4G single-band WiFi, you can avoid the home of other Home Appliances Z5 interference, dual-band WiFi can provide greater bandwidth and stronger data throughput The ability to provide smooth channels for users to watch and listen to music without the phenomenon of stalling. In addition, the Fast Connection technology is also specially used this time to set up a good WiFi connection for the first time. When the camera is turned on again, WIFI can be quickly connected. The viewing does not require long wait.

The Z5 power without screen TV is 100% higher than the Z4X, but the volume is only 16% higher than that of the Z4X. The design of the dual fan makes the noise of the Z5 less than 30db within a distance of one meter. It is stable and quiet during operation. Users can immerse themselves in movies and music from noise.

Function: Dual screen function supernatural, interactive experience

The dual-screen function of the Z5 screenless TV Z5 can divide the screen into two according to the requirements in actual use. Want to realize this function, first need to long press the menu button on the remote control, the menu will appear at the bottom of the screen, click the dual screen mode icon will enter dual screen mode.

After entering the dual screen, one of the screens can play the local content through the built-in system, and the other screen can display the corresponding content through the external connection. In dual-screen mode, users can adjust the size, volume, and source of the two screens according to their needs.

Technology: Audio and video enhancement technology strikes and captures your audiovisual sensation

Zilami no screen TV Z5 to enhance the quality of the video performance, new motion compensation technology and HDR10 high dynamic range image technology, two applications in the non-screen TV's picture quality technology, so that the picture is more realistic and moving. Motion compensation technology corrects the smearing and jitter of dynamic pictures to make images smoother. Images using HDR high dynamic range image technology can display richer color hierarchies and details than ordinary images.

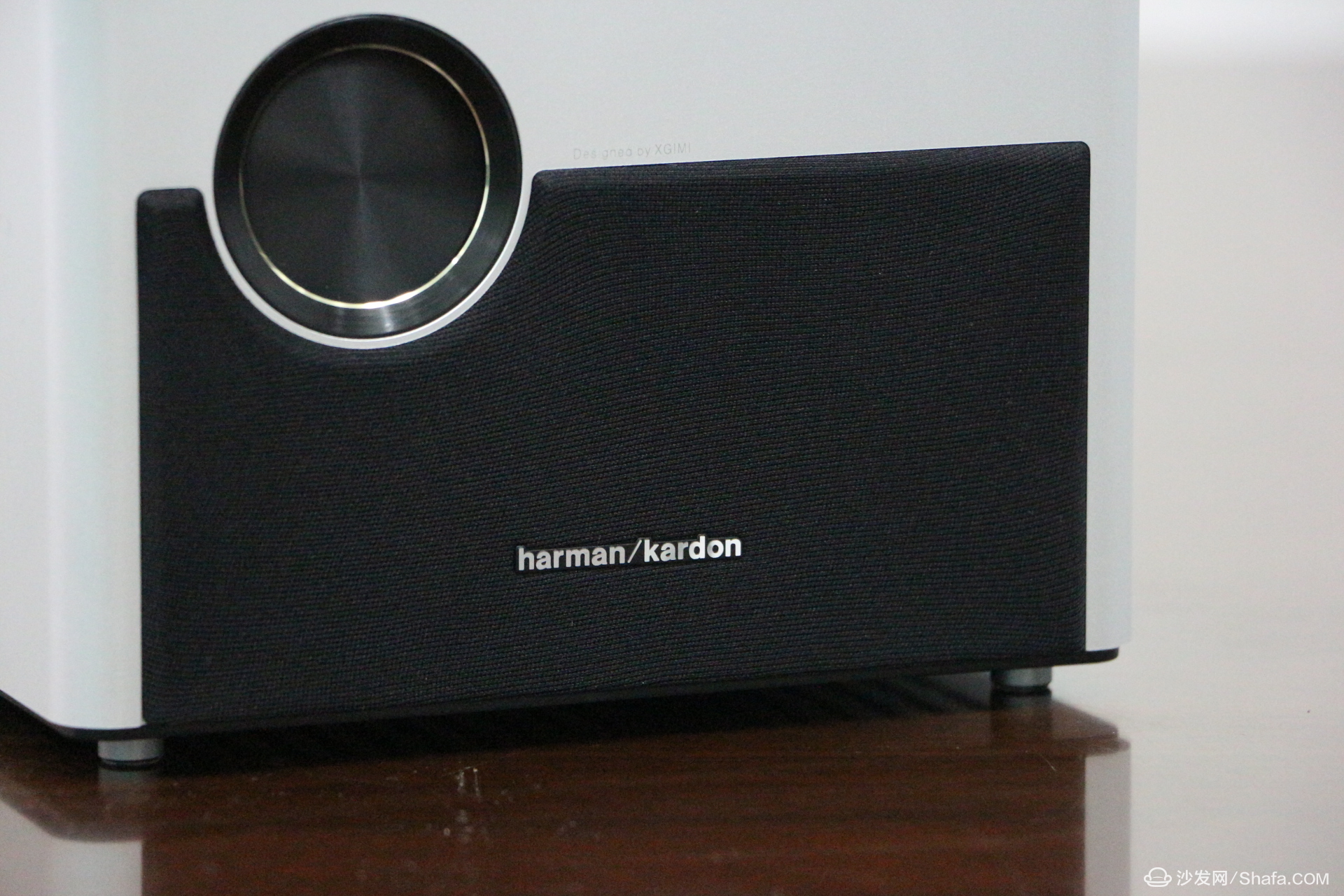

The Z5 screenless television Z5 featured international brand harman/kardon 40mm dual-speaker units, which were tuned by Harman Kardon master-level standards and made the sound quality even better. When the user just wants to listen to music, the Z5 can change the high-quality smart sound in seconds. Only need to press the switch button on the panel, you can enter the audio mode with a key, connect Bluetooth is a Bluetooth audio, play music in the phone; without manual settings, disconnect the Bluetooth is a WiFi audio, play the network music.

Platform resources: mango, iqiyi two super resources platform help, always find your favorite

In terms of music, we can see from the introduction of the international brand harman/kardon influence, we can see the concept of “not to be”, and it is necessary to bring more professional audio experience to users. Of course, very few meters can be made on resources. The new Mimi Music has signed 8 million songs and has reached 5.3 million. The music library includes Sony, Universal from the three major record companies; Taiwan Record Company believes in JV, Fu Mau and the domestic Taihe Group. And major independent musician studios. The entire music library radiates a rich library of high quality music including Mandarin, Cantonese, English, Japanese, Korean, and European small languages, and hot song coverage can be as high as 75%.

In terms of music library quality, it has 128K standard sound quality, 320K high quality and massive Flac lossless music, and with extremely Mi Harman Kardon's sound, it will definitely give users the best user experience and effect, and it is expected that by the end of 17th. It will become a massive library with a volume of 10 million.

to sum up:

The concept of ultra-wide vision and sound makes the application of its products more comprehensive, creating a more immersive atmosphere for users and providing users with a more three-dimensional experience. The Z5 is a continuation of the Z series. The ultra-thousands of lumens brightness can meet the diverse display needs of users. Harman/Kardon audio enables users to enjoy clear and natural sounds. Rich and genuine resources allow users to freely I want to hear what I want to see. Details such as electric sliding doors, left and right trapezoidal corrections, and dual-band WiFi 2.4G/5G have been enhanced to show that these are tailored to tap users' needs in depth. In addition, the trapezoidal correction mode is quite practical, and because of its compact size, the Z5 is possible to be placed anywhere. For example, I put the Z5 on the side of a bed or on a low cabinet near the sofa. The picture projected by the Z5 against the wall is oblique and will also be distorted, which is what we call the sideways cast. At this time, I only need to turn on the meter Z5. With the keystone correction function, the remote control can be restored to the normal screen with a few clicks. Zimi Z5 can support trapezoidal correction up and down about 45 degrees, regardless of the uneven wall, or placed diagonally, we can all see the square screen right in front. Interested users can actually experience it.
